816XL
900 NORTH STAR KIT

Unique Look and Durability beyond Comparison

Provides increased light output over conventional halogen searchlight. Tough stainless body fabricated by spinning of Japanese craftsmanship.

FEATURES

• Ideal spot beam pattern focusing on objects
• Offering increased durability over IPF 924 halogen searchlights
• Passed IPF's stringent vibration performance test
• Unique optically designed "TRI-WALL REFLECTOR" creates clean and powerful spot beam
• Employs 3 x 10W LEDs to deliver high-intensity light
• Tough stainless body fabricated by spinning of craftsmanship
• Aluminum heatsink surrounded on the rim for efficient heat release from LEDs
• Developed the removable one-piece LED module, ensuring part replacement in case damaged

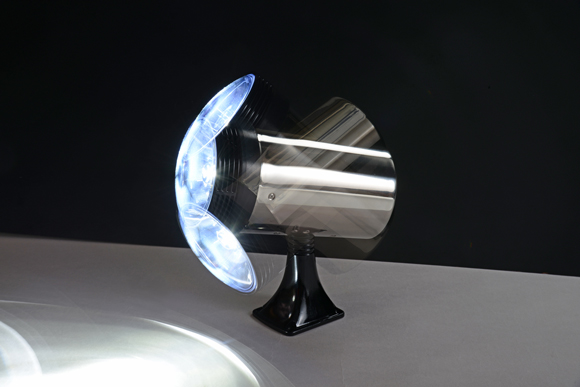

• Twin motors' driver units allow simultaneous operation, diagonal direction movable at the same time using joystick controller
• 80-degree moving up and down, 360-degree moving from side to side
• Added water-proof connector and rubber to prevent water ingress
• Internal mount LED driver with radio noise-reduction circuit to meet strict EU requirements
• Stainless housing and polycarbonate lens
Light output:
• Lumens / 2,400lm
• Candela / 200,000cd
Kit includes:
• 1 Light
• Wiring harness with Deutsch waterproof connector
• Joy stick control switch panel
Halogen

Halogen
Halogen
Halogen
Halogen

Improved Visibility for Distance. Replicates 924 Series' Beam Pattern


Product Dimensions & Wiring Diagram



Halogen
Halogen
Halogen
Halogen


LINE UP

341HLB341HLB
Part Number Specification Price
924SL Spot Beam / Twin Motors (28w) / 12-24v / 3 x 10w LEDs OPEN
Product Size (mm): W 134 / H 236 / L 244
Weight: 2,800g / 1 Lamp
Package Size (mm): W 400 / H 165 / L 265
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
