940SRL LIGHTS ADDED A NEW FEATURE "POSITONING LIGHT"

IPF added a new feature "Day/Night Time Positioning Light" to the 940 SUPER RALLY LED lights.
Offering a new specifically designed wiring harness "WF-2DT" incorporating unique "ON-OFF-ON" 3 Position Switch .

IPF developed a unique optical reflector to optimize high performance LEDs.
Proven lighting control technique accumulated in the Japanese car market over the years.
940 SUPER RALLY LED series' lights create clean yet powerful light.

FEATURES

• Added New Feature "Positioning Light"
• Offering specifically designed Wiring Harness (WF-2DT)
• Light and Harness are sold individually
• Unique optically designed "TRI-WALL REFLECTOR" creates clean and powerful beam patterns in any adverse conditions
• Employs 3 x 10W CREE High Power LEDs to deliver ultra-high intensity white light
• Lumens/Candela/ *2,200 Lm / Spot -525,000CD, Driving-118,000CD
• LED Color Temperature: 6500K
• Life-Span 30,000 hr
• ECE Compliant Driving Light
• Internal mount High Quality LED driver with Radio Noise-Reduction circuit fitted with Waterproof Deutsch DT-6 connector
• Super Tough Die Cast Alloy Body incorporating finned Heatsink
• Integrated Lens and Ring moulded in extremely tough UV Stabilised and Hard Coated Polycarbonate resin
• Proven multi-directional mounting base using Stainless Steel cup
• Die Cast Alloy Pedestal and M12 heavy duty mounting stud
• Submersible "Sealed for Life" design using highly advanced, Heatproof Resin Reflector, incorporating water and dust resistant membrane breather
*Raw Lumen

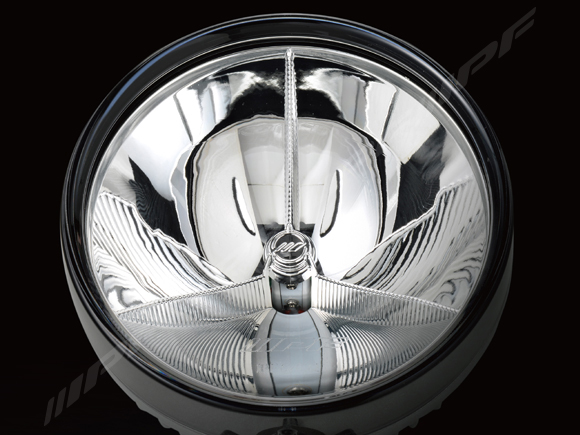

"TRI-WALL REFLECTORTM"-
LEDs as a light source, unlike halogen lights and HIDs, produce directionally intense light which can be a needless dazzle.
With proven lighting control technique, IPF 940 SUPER RALLY LED Lights deliver a high level of light-gathering capability, hence making efficient use of LED light intensity.
IPF's unique optically designed "TRI-WALL REFLECTOR" creates clean and powerful focused beam patterns without loss of LED light.
IPF's unique optical design enables 3-LED elements emitting light to reduce scattered light and produce a properly-specified light distribution even under adverse conditions.

Extreme Grill Guard
• CE Marking certified
• ROHS EMC compliant
• E-Mark / ECE Regulation112 certified


Accessory Details

• Specifically Designed Wiring Harness (WF-2DT)
• ON-OFF-ON Switch
• Waterproof Deutsch DT Connector
• Wiring Harness sold separately
Instruction Manual (WF-2DT)

Durability and Efficiency



• Tough Die-Cast Aluminum Light-weight Body and Large Size Heatsink for High Performance in harsh Conditions
• Water and Dustproof with Air Pressure Condition Ventilator System
• Heat and Shock Resistance
• Integrated Lens and Ring moulded in extremely tough UV Stabilised
and Hard Coated Polycarbonate resin
• Proven multi-directional mounting base using Stainless Steel cup
• Die Cast Alloy Pedestal and M12 heavy duty mounting stud,
optional Stone Guards attachable
"Large Size Heatsink to cool off LED generating heat"
In general, it is believed that LED generates small amount of heat. Regarding car lights especially using high intensity LEDs,
it flows high electrical current and generates excessive heat that causes lighting failure and less luminous intensity.
Large Size Heatsink to cool off LED generating heat, to prevent those cases and keep original light output.

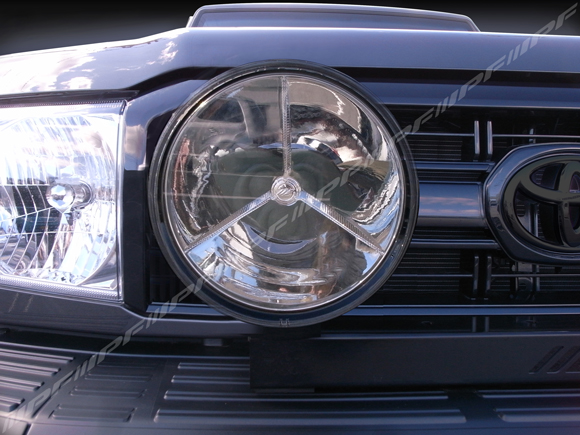

MOUNT IMAGE






• Stone Guard sold separately, Part# G-900X

Product Dimensions & Wiring Diagram


900xls配線図



940 SUPER RALLY LED LINE UP

622RJ
612RJ
Part Number Specification Price
940SRLD2WPL Driving: 12-24v/ 30w/ Positioning Light: 0.2w/ 1 Lamp OPEN
940SRLS2WPL Spot: 12-24v/ 30w/ Positioning Light: 0.2w/ 1 Lamp OPEN
Product Size: W 200mm/ H 220mm/ D 121.5mm/ Weight: 1,500g/ 1Lamp
Package Size: W 230mm/ H 145mm/ D 210mm

Optional Accsesory


Part Number Specification Price
WF-2DT Water Proof DT-6 Wiring Harness/ ON-OFF-ON Switch OPEN
G-900X Stone Guard for IPF 900XS & 940SRL Series/ 1 pcs OPEN
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
