Wiring Harness Complete Kit

Wiring Harness Complete Kit including Switch and Relay

WH
WH
WF
WF
WF
WF-1DT
12v specification (12 relay included)
*Photograph is a sample Which is different from the actual product.

WF SERIES LINE UP

Part# Specification Price
WF-4 Complete Wiring Harness Kit for 930 Super Rally Series (Bulb Type H4, Low 300w + High 600w MAX) OPEN
WF-3 Complete Wiring Harness Kit for 900 Series (Bulb Type H3, 300w MAX) OPEN
WF-1DT Sport Wiring DT-6 Harness/Switch, Relay, Fuse for two Lamps OPEN

WH SERIES LINE UP

Part# Specification Price
WH-2 Complete Wiring Harness Kit for IPF Head Light Series (600w MAX) 2 or 4 Lighting System for Low Beam OPEN
WH-2:There is a car that causes abnormal blinking depending to the model. Per Light/150w MAX.

To the top of this page

LAMP STAY・SWITCH
LIGHT STAY
LIGHT STAY
TOGRE SWITCH
TOGRE SWITCH

LAMP STAY LINE UP

Part# Specification Price
BK-4 145mm (Maximum Length) OPEN
BK-5 245mm (Maximum Length) OPEN

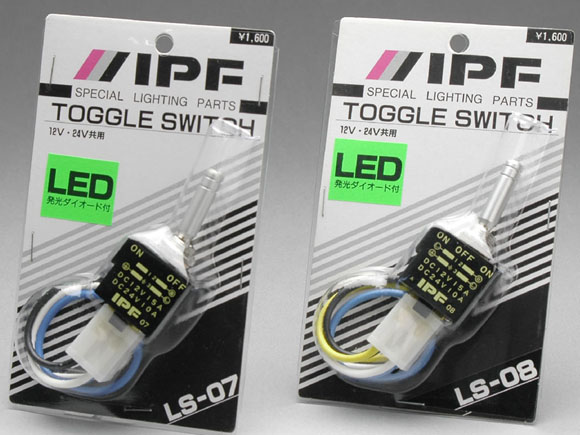

IPF TOGGLE SWITCH LINE UP

Part# Specification Price
LS-7 ON-OFF Switch OPEN
LS-8 ON-OFF-ON Switch OPEN

To the top of this page

RELAY
LIGHT STAY
WA-17
TOGRE SWITCH
WA-18

OPTIONAL RELAY LINE UP

Part# Specification Price
WA-17 Product Name: 600 Series 12V Relay OPEN
WA-18 Product Name: 600 Series 24V Relay OPEN
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
