SUPER LOW BEAM X5
SUPER LOW BEAM X5

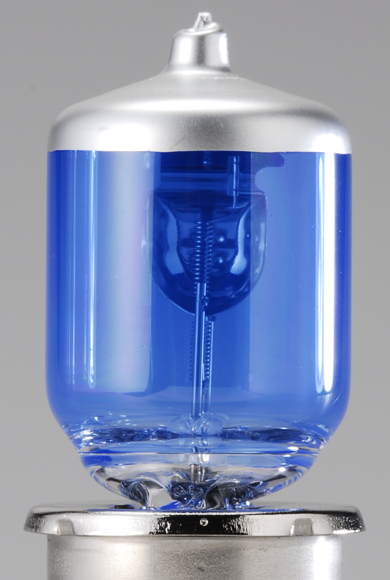

OVERWHELMING THICKNESS! ADOPTTION OF SUPER THICK BURNER!


Super thick burner is 1.5 times thicker than super low beam series.
By encapsulating the gas volume of about three times the normal, which contributes to the activation of the halogen cycle.
Stable life by sealing more xenon gas.

Long-lasting brightness. Lumen maintenance factor significantly UP


blackening occurs as using bulb. Glass tube of this bulb is so thick, so the transmittance of light is hardly lowered. Also, the ratio of the blackened area is low.
Improved lumen maintenance factor with this.

High wattage of only the low beam side which is high frequency everyday use

•The high efficiency of the low beam most frequently used in everyday

The sealed xenon gas that is used for the HID

?Stable life by sealing xenon gas

Adoption of Luxury crystal glass

ノーマル
•In order to up the brightness, adoption of a crystal glass which enables sealed gas under high pressure.

Choose from 3 types of color temperature

•Emphasis on dress up 5000K
•Bright blue-white light 4800K
•Pursuit of pure white 4600K
URBAN WHITE 46OOK
URBAN WHITE 46OOK
XENON WHITE 4800K
XENON WHITE 4800K
XENON BLUE 5000K
XENON BLUE 5000K
•Available for resin headlight
•No need for relay harness even high wattage, changeable to head light bulb H4 12V 60/55 watt
•PACKAGE SIZE:H.123×W.97×D.60

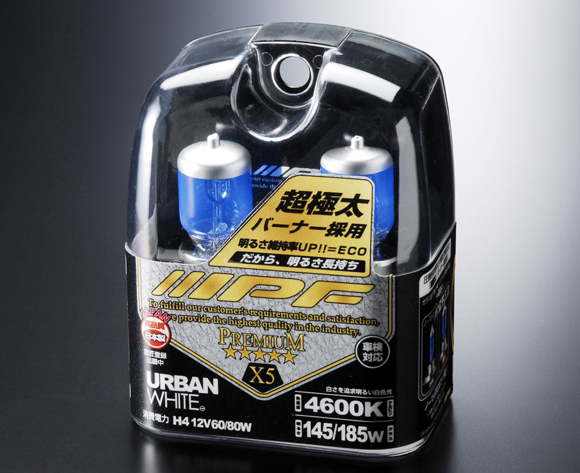

URBAN WHITE 4600K

5X43
URBAN WHITE 5X43
URBAN WHITE IRRADIATION IMAGE
URBAN WHITE IRRADIATION IMAGE
•Pursuit of pure white 4600K
•Pursuit of whiteness. Bright white light
ITEM BULB TYPE WATTAGE BRIGHTNESS PRICE EAN CODE
5X43H460/80w 145/185w OPEN 4951499 010840

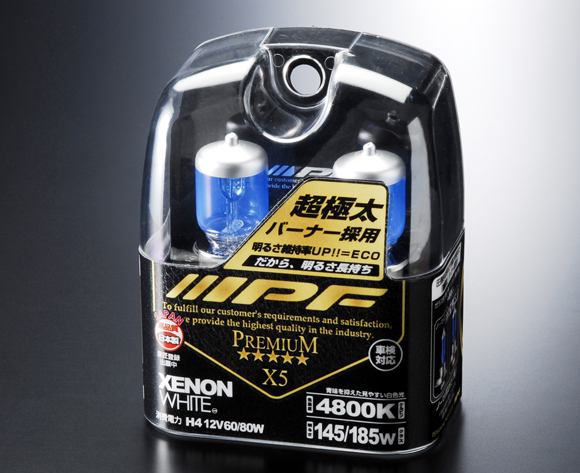

XENON WHITE 4800K

5X44
XENON WHITE 5X44
XENON WHITE IRRADIATION IMAGE
XENON WHITE IRRADIATION IMAGE
•Bright blue-white light 4800K
•Easy to see white light with less bluish
ITEM BULB TYPE WATTAGE BRIGHTNESS PRICE EAN CODE
5X44H460/80w 145/185w OPEN 4951499 010857

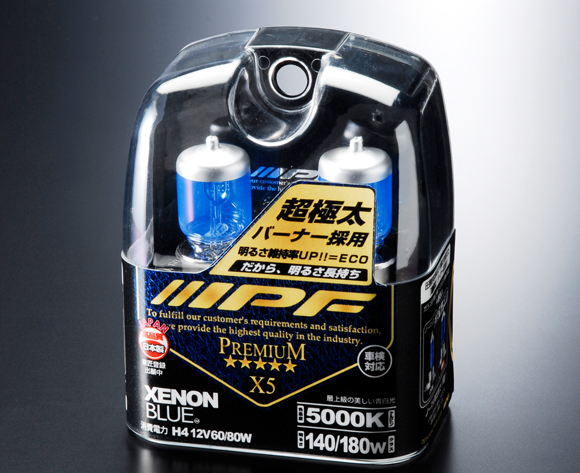

XENON BLUE 5000K

5X45
XENON BLUE 5X45
XENON BLUE IRRADIATION IMAGE
XENON BLUE IRRADIATION IMAGE
•Emphasis on dress up 5000K
•Beautiful blue-white light
ITEM BULB TYPE WATTAGE BRIGHTNESS PRICE EAN CODE
5X45 H460/80w 140/180w ¥11,340 4951499 010864
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
