///IPF F141HLB LED HEAD LAMP CONVERSION KIT

NEW "F SERIES" ALL-IN-ONE BODY ASSEMBLY LED BULB

Market-leading IPF LED headlamp bulb series has evolved as the F
series. It provides outstanding performance of brightness and wide light
distribution. Highly regarded "all-in-one" body assembly H11, HB3/4
and HIR2 type LED bulbs incorporate great new technologies.
The new F series LED bulbs are developed to provide all time high
lighting performance.

FEATURES

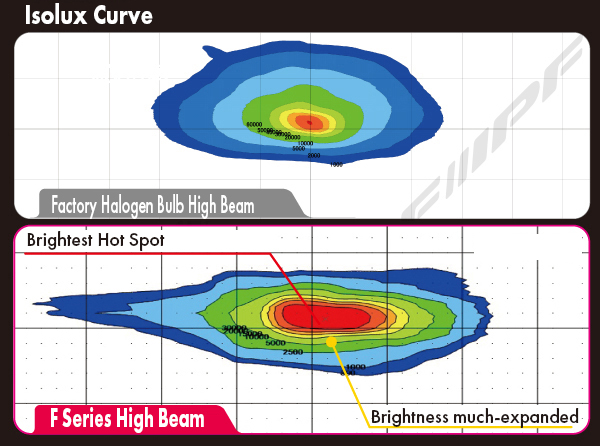

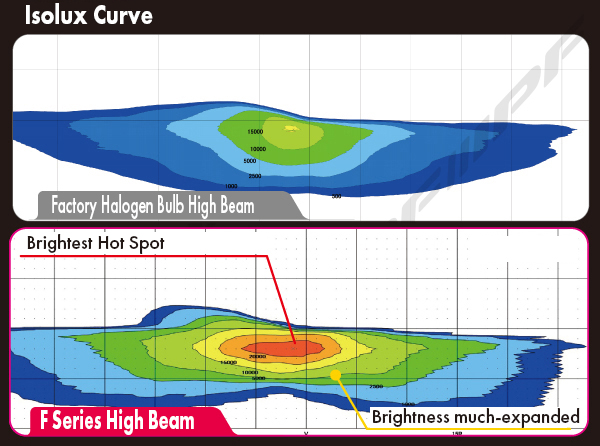

• Improved road visibility for distance and width without loss of LED light
• Maximized light output giving of IPF's accumulated knowledge and key technologies
• Enhanced lumen maintenance so as to maintain LED bulb's initial light output and brightness
• Ensures reliability and improved road visibility when night-time driving
• Offering a proper beam pattern and bright illumination
• Truly replicates halogen filament placement

Improved Road Visibility

Factory Halogen Bulb

F Series LED Bulb

Three Key Technologies

IPF brought the all-new three technologies into the F series LED bulbs. Enhanced heat release design to offer the best and brightest
lighting performance. The thinner LED bulb body, the better light pattern can be made. The thicker LED bulb, the better heat release
efficiency can be achieved. IPF's performance LED bulbs can balance excellent light distribution characteristics with outstanding
brightness. 5000 lumen in total flux (conventional ratio138% UP) is a sizable improvement in lighting performance.

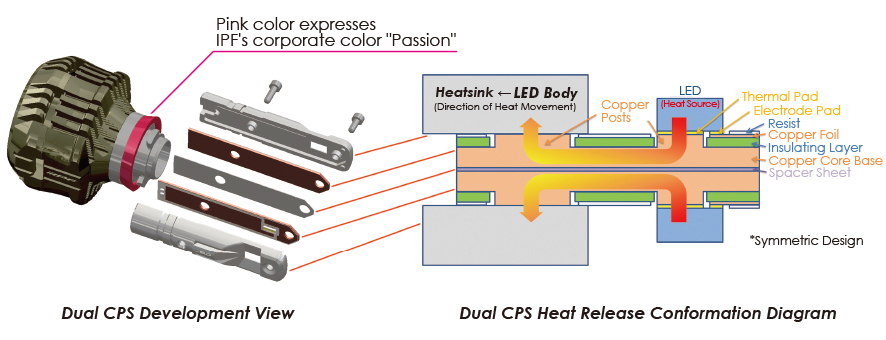

Technology 1 "Dual CPS - Dual Copper Post Structure-" (Patented Design)
• IPF's performance LED bulbs feature the most efficient method for heat release
• Adopts our patent technology, "Dual CPS"
• Advanced manufacturing technology "Post Structure" provides high-spec copper substrate
• "Dual CPS" delivers thin structure of LED bulb body and conducts heat given off from LED circuits to the heatsink

Technology 2 "Highly efficient Heat Conduction & Release Design"
• Highly heat-conductive aluminum die-cast alloy LED body
• Proven reliable heatsink using extruded aluminum alloy A6063
• Optimized heatsink shape ensures enhanced heat release efficiency

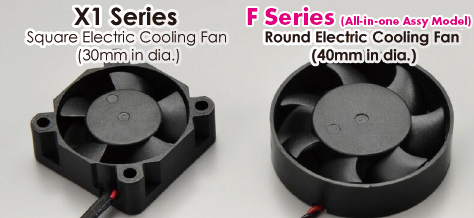

Technology 3 "Top Performance large-sized Electric Cooling Fan"
• Optimized heatsink incorporating large-sized cooling fan
• Increased wind power - conventional ratio 146%
• Large volume of air delivered ensures the LED bulb runs cooler

New Circuit Design "SEPIC" System

"SEPIC" system provides high operational reliability and reduction of electrical noise.

• "Single Ended Primary Inductor Converter" offers several technology merits:
• Miniaturization of electronic circuits
• Improved electromagnetic compatibility (EMC)
• Highly reliable long-lasting operation
• Employs Japanese-made hybrid condenser, three terminal filter and common mode noise rejection choke coil
• Well-selected high quality components provide protection against electromagnetic interference
• IPF's latest LED bulbs are compatible with hybrid vehicle, EV and PHEV both 12/24v vehicles

Electrical Noise Protection - Safety Features

Equipped with number of high-spec safety features and enhanced electromagnetic compatibility.

• Optimized board pattern
• Improved electromagnetic compatibility to reduce electrical noise
• Integrated high-performance noise filter
• Highest quality noise reduction performance
• Large number of protection features according to OEM standards
• Electrostatic/pulse protection
• Over/under voltage protection
• Overcurrent protection

Easy Installation (4 Steps)

"All-in-one" body assembly allows for ease of installation and a built-in electric fan mitigates the buildup of heat.
Continuous airflow protects electric components' damage from heat.

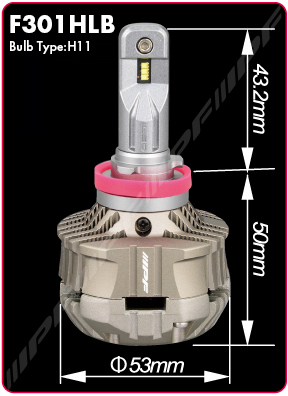

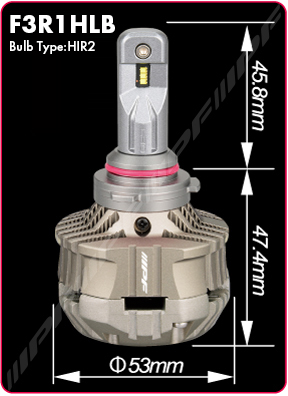

Product Dimensions & Attachment

IPF releases regular bulb types including H11, HB3/4 and newly added HIR2 bulb type which is fitted with TOYOTA CH-R etc.
F series LED bulbs provide ideal of beam pattern, eliminating scattered and glare light. Designed to perfectly fit with each bulb
type's attachment.

Required installation clearance is 25mm from the rear of halogen bulb. Clearance about 100mm needed when removing halogen bulb.
If there is not enough space to allow full range of the LED bulb's movement, then remove your vehicle's headlamp units for installation.

Uncompromised Quality

• Selected highly durable quality parts
• Manufactured in a strict quality control regime
• Meets OEM demand standard test
• Based on IPF's product performance evaluations
• Adds muddy salted water test
• Conducts real car endurance test
• Passed toughest evaluation tests
• Provides improved durability to withstand in conceivable harsh usage environment
• Compatible with Hybrid vehicles and ECO idling or start-stop cut off system
*In general usage environment, IPF's LED conversion kits deliver a sense of safety while using it for a long time as vehicle lighting is the most important security part and it offers a maintenance-free secure feeling.

LINE UP

F301HLB2

F351HLB2

F3R1HLB2

Part Number	Bulb Type	Power Consumption	Color Temperature	Price
F301HLB2	H11	12v/24v 28w	6500k	OPEN
F351HLB2	HB3/4	12v/24v 28w	6500k	OPEN
F3R1HLB2	HIR2	12v/24v 28w	6500k	OPEN

///Term description///

Lumen	It is the unit of the optical energy generated from an electric bulb. When numerical value is large, the brightness of the bulb become brighter.
Candela	Measure the brightest point numerically when a head lamp is equipment.
kelvin	Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself, expressed on the Kelvin (K) scale.
Light source
Halogen	Halogen light bulbs are a special type of incandescent light bulb. They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass. It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D	High Intensity Discharge, it the new replacement technology for halogen headlights. Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well. Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED	LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination. LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker. These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
