JIMNY JB74 EXP Rear Ladder



One and Only JIMNY Rear Ladder

Unique design with robust 4-mm extra thickness aluminum plates (design registration applied for).

Lightweight aluminum One-Piece Body


*Mounting brackets and logo plate are made of stainless steel.

Improved Usability and Ease of Installation

Delivers 165mm steps effective breadth owing to low-profile sides frame.
Maximum wheel/tire size: 6.5R16 (763mm in dia.)
*Spare tire mounting position on the rear of the vehicle must be in the original position.

Durable and Weather-Resistant Black Powder Coating Finish


Mounting Holes for Lamp Stay

*Optional lamp stay and lamps (642WL-1 or 642BL) are available. Sold separately.

In-House Production

Made in Japan

Installation Manual

Installation Manual: EXL-01
Installation Manual: EXL-01P

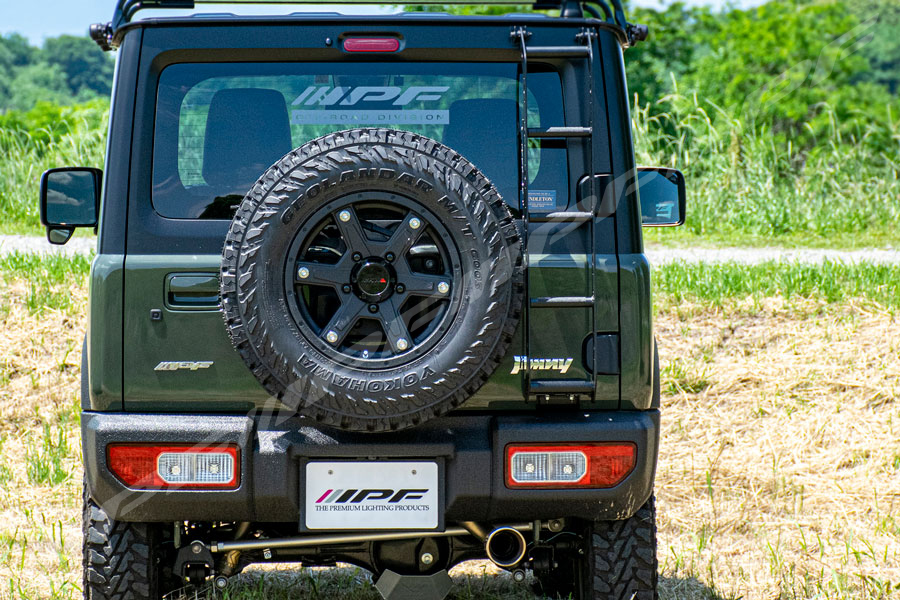

Mounting Image











LINE UP

341HLB
Part Number Description Vehicle Type Weight Price
EXL-01 Rear Ladder for JIMNY JB74 JIMNY JB74 2.6kg OPEN

Optional Accessories

341HLB
Part Number Description Vehicle Type Weight Price
EXL-01P Rear Ladder Lamp Stay JIMNY JB74 etc. 0.3kg OPEN
341HLB
341HLB
341HLB
341HLB
Part Number Description Attachable Products Weight Price
EXL-02P Rear Ladder RotopaX Stay RotopaX Packs 0.45g OPEN
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
